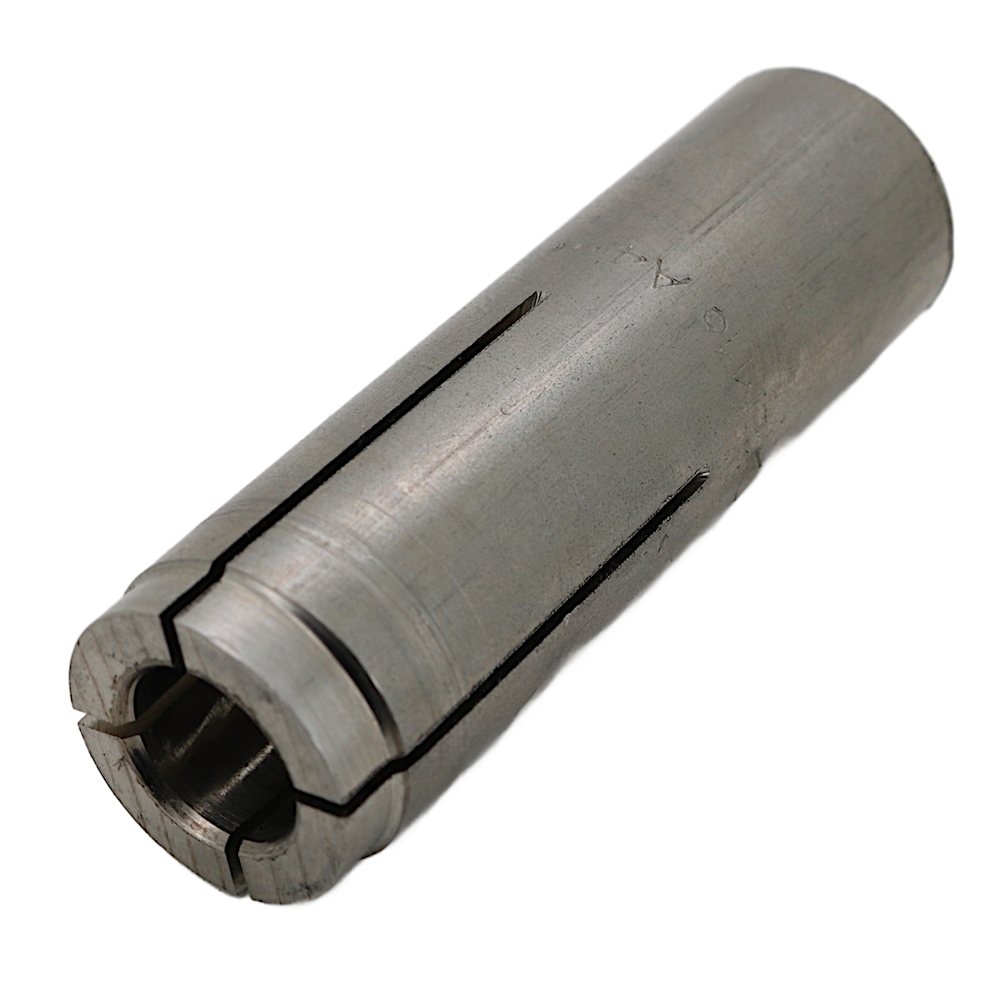

M16 Drop In Anchor Stainless Steel (16mm) - JCP Fixings
In stock
SKU: DSSM16
| Thread Diameter | M16 |
| Overall Anchor Length | 65mm |
| Drill Hole Diameter | 20mm |
| Setting Puch SKU Code | DZSP16 |
| Fixture Clearance Hole | 18mm |
| Internal Thread Length | 23mm |
| Embedment Depth | 65mm |
| Minimum Hole Depth | 65mm |
| Minimum Structure Thickness | 160mm |
| Maximum Installation Torque | 60Nm |
- A4/AISI 316 stainless steel
- For use in non-cracked concrete C20/25 and C50/60
- Deformation controlled
- Tested to ETAG 001 Part 4
- Suitable setting punch required for installation
£9.19
£7.66
Delivery Information
