KL100 Zip Clip Wire Hanging Kit - 100 Meters 2mm Wire - 20 x Zip Clips - 1 x Cutter

In stock
SKU: KL100KIT

KL100 Zip Clip Steel Wire Rope Kit - Zip Clip Wire Hanging System

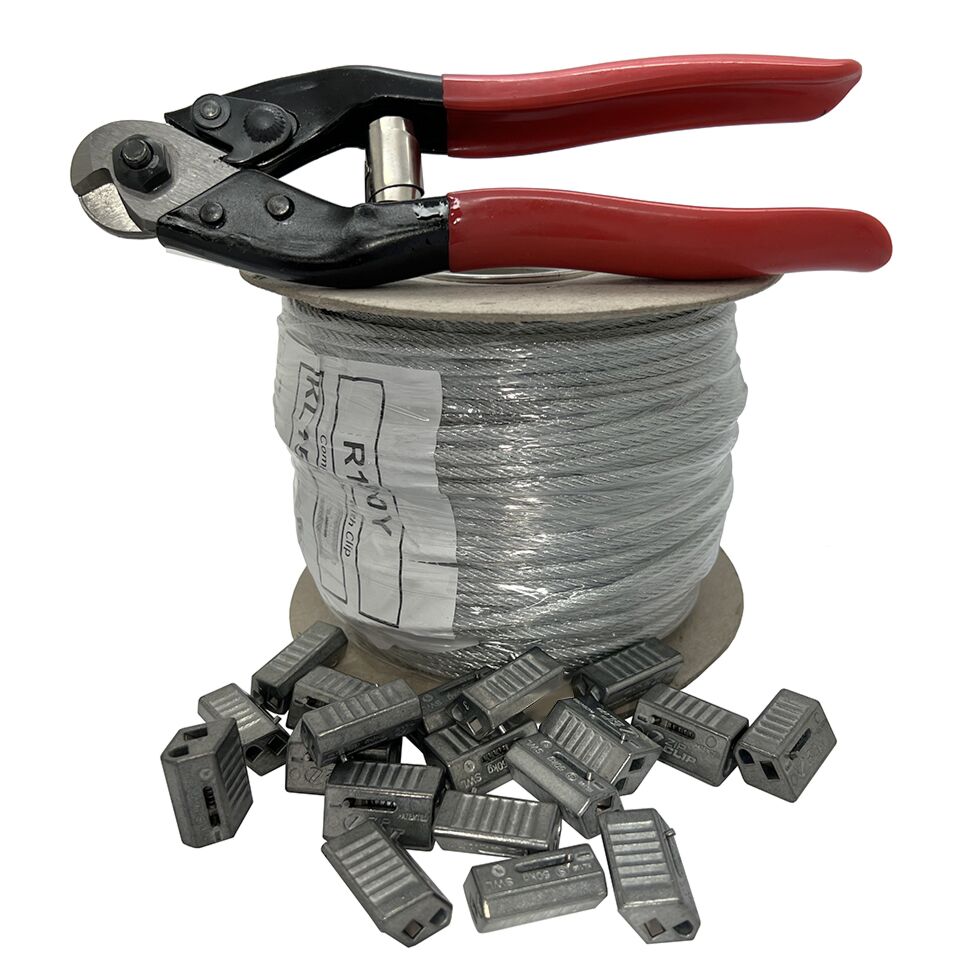

This kit comes with

  • 100 meter reel of 2mm 7x7 galvanised steel wire rope
  • 20 x KL100 Zip-Clips
  • 1 x Wire Rope Cutter

This handy kit allows you to cut the wire onsite and to quickly and easily make wire hanging systems

The KL100 Zip-Clip Kit has a SWL of 50kgs



Show Price without VAT
£67.92 £56.60

Installation guide

  • Cut wire to desired length for the drop required
  • Pass one end of the wire through the zip-clip in the direction of the arrow on the Zip-Clip Rize body and draw through enough wire to go around your fixing point
  • Pass the wire end back through the zip-clip leaving at least 15cm of free wire protruding
  • At the other end again pass the wire through the zip-clip in the direction of the arrow
  • Pass the free end of wire around your suspension or through your fixing and back through the zip-clip leaving 15cm of wire protruding
  • Always confirm engagement of the zip-clip on the wire by pushing the pin in the opposite direction to the arrows indicated

Zip-Clip drawing
