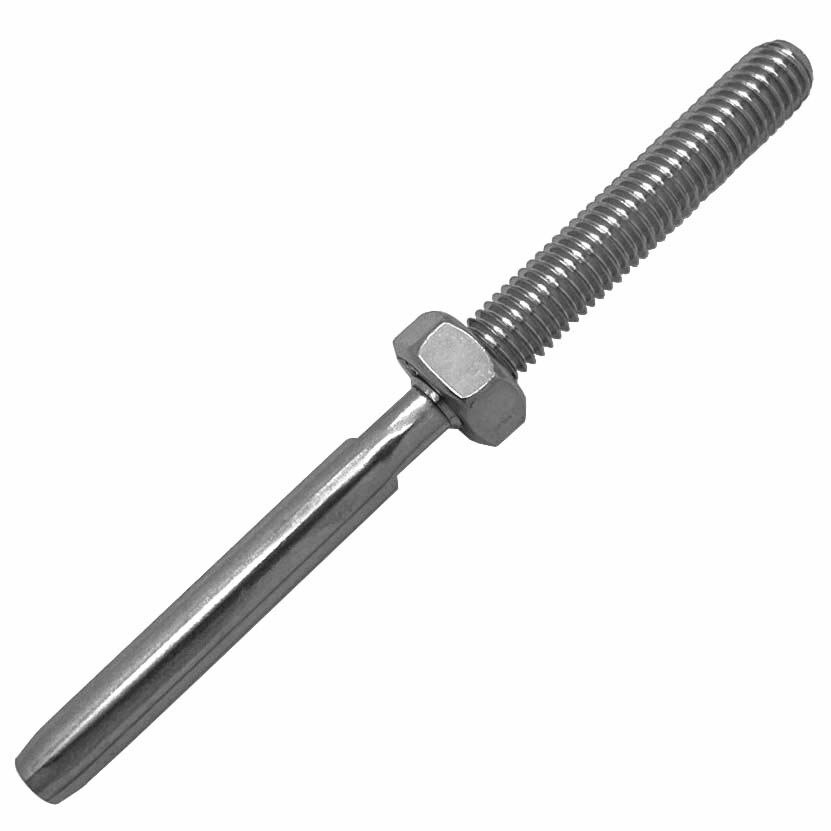

Stainless Steel Wire Rope Swage Stud Terminals - Left Handed

Check out these stainless steel wire rope swage on stud terminals with left handed thread

  • A4-AISI 316 marine grade - polished finish
  • Commonly used at opposite end to a right handed version
  • Left handed thread, metric coarse
  • These fittings need to be crimped or swaged on to the steel wire rope
  • Available for use with 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm and 10mm diameter steel wire ropes
  • Comes with 1 x hex nut

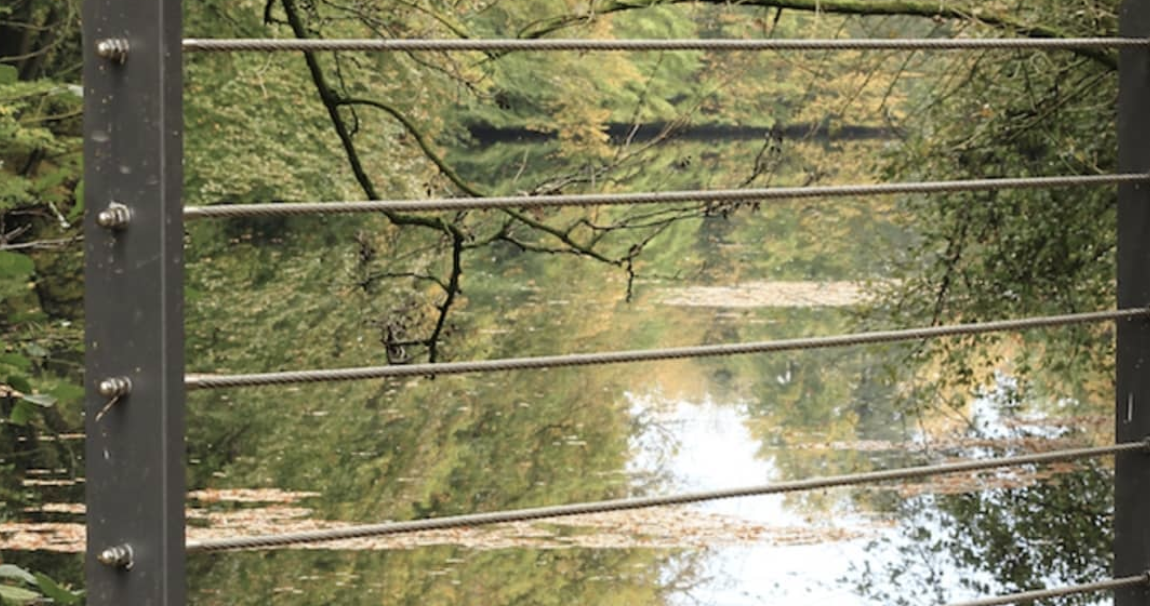

Commonly used with steel wire rope balustrades systems which have steel posts. These fittings can either be passed through the post and secured with a nut or you can tapp out your hole and screw directly into your post

In stock
Grouped product items
Product Name A (mm) L (mm) D (mm) G (mm) L2 (mm) L1 (mm) Suit Wire Ø (mm) PRICE Qty
2mm Left Handed Swage Stud (M5 Stud) 2 86 5.5 5 30 40 2
£1.60 £1.33
2.5mm Left Handed Swage Stud (M5 Stud) 2.5 86 5.5 5 30 40 2.5
£1.61 £1.34
3mm Left Handed Swage Stud (M6 Stud) 3.3 80 6.35 6 32 40 3
£1.70 £1.42
4mm Left Handed Swage Stud (M8 Stud) 4.2 102 7.5 8 40 52 4
£1.99 £1.66
5mm Left Handed Swage Stud (M10 Stud) 5.2 130 9 10 57 63 5
£2.69 £2.24
6mm Left Handed Swage Stud (M12 Stud) 6.75 142 12.5 12 63 68 6
£4.79 £3.99
8mm Left Handed Swage Stud (M16 Stud) 9 200 17 16 75 100 8
£14.39 £11.99
10mm Left Handed Swage Stud (M16 Stud) 11 215 18 16 90 100 10
£19.19 £15.99
Show Price without VAT

Left handed stud swage terminals, often used on the opposite end to a right handed version, with both hands being opposite handed threads it allows for balustrade wires to be screwed inwards or outwards at the same time




Steel wire rope swaging service

We have an experienced team of steel wire rope riggers who can professionally press your swage terminals for you - get in touch for a quote
