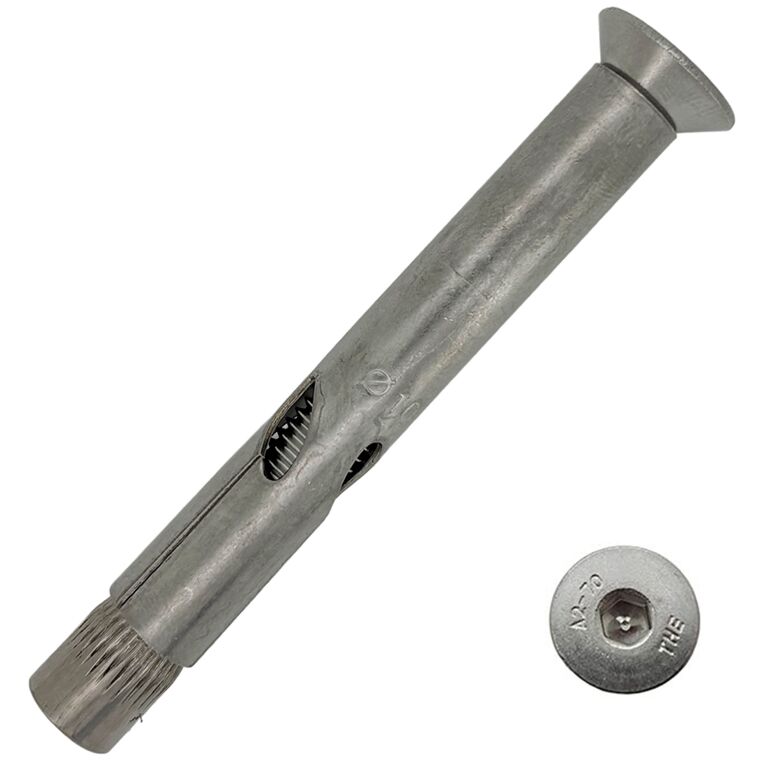

12mm x 70mm Stainless Steel Countersunk Sleeve Anchor
In stock
SKU: SLC12070SS
| Drill Diameter | 12mm |
| Overall Anchor Length | 70mm |
| Head Diameter | 20mm |
| Maximum Fixture Clearance | 10mm |
| Minimum Hole Depth | 75mm |
| Hex Socket Drive A/F | 6mm |
| Minimum Structure Thickness | 100mm |
| Installation Torque Concrete | 35Nm |
| Installation Torque Brick | 32Nm |
| Installation Torque Block | 25Nm |
- A2/AISI 304 stainless steel countersunk sleeve anchor
- Torque controlled expansion collapse feature to allow a positive clamping force
- For use in non-cracked concrete, dense concrete blocks, solid bricks and some ntural stone
- Supplied pre-assembled for rapid installation
£2.32
£1.93
