Galvanised Turnbuckle US Federal Specification Eye/Jaw

GS Products supply a range of hot dipped galvanised steel turnbuckles.

These tensioners are made to US Federal specification.

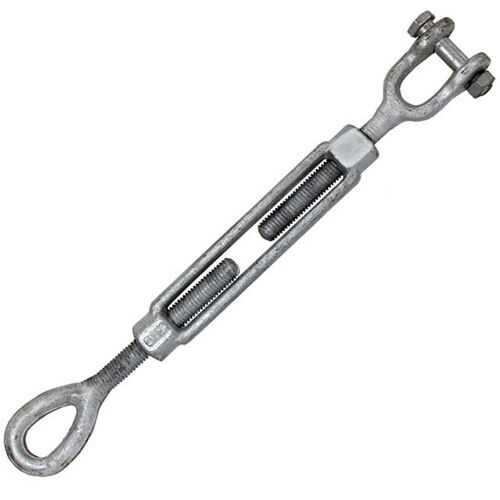

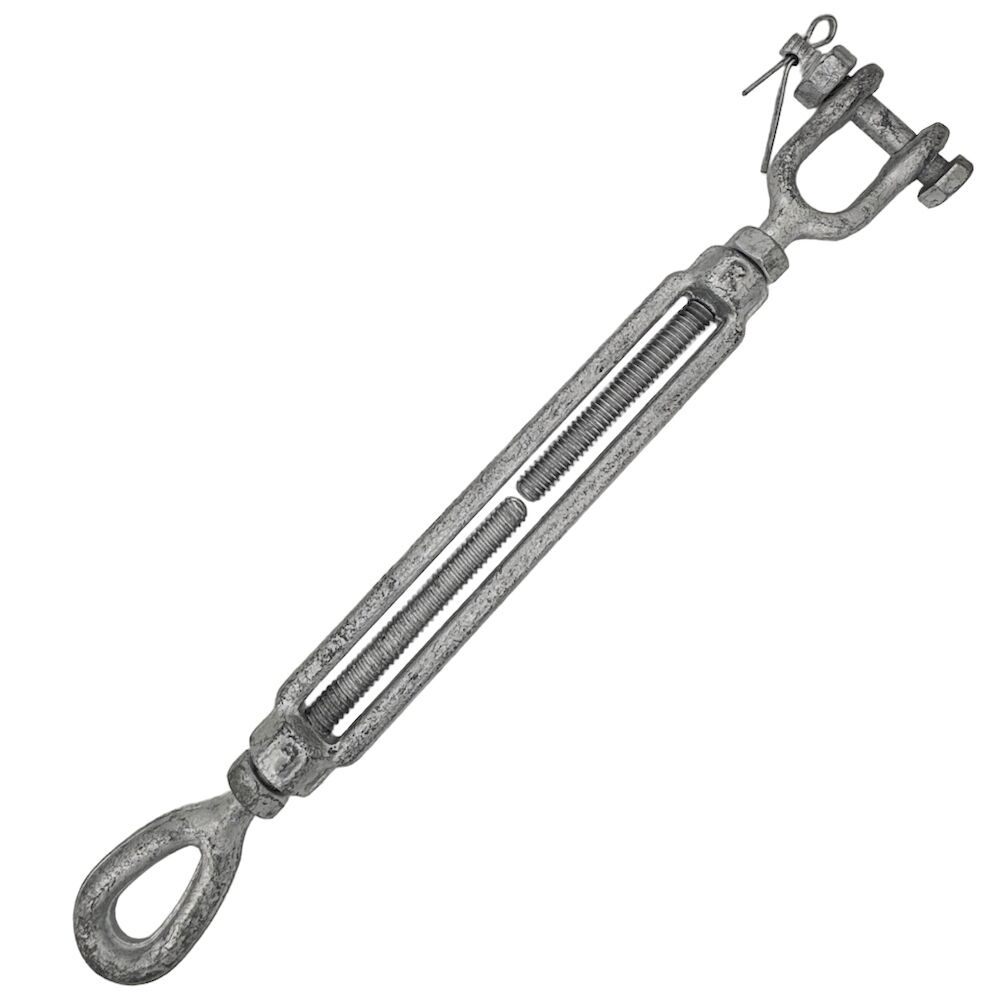

One end has an elongated eye and the other end has a jaw with a removable pin, both ends come supplied with locking nuts.

Ideal for all types of rigging.

Working Load Limit (W.L.L) attached with a safety factor of 5:1.

In stock

Grouped product items
Product Name	A (inch)	D (inch)	G (inch)	B (inch)	C (inch)	R (inch)	S (inch)	K (inch)	WLL Tons	PRICE
1/4" x 4" Turnbuckle	0.25	0.45	0.62	11.35	7.35	0.78	0.34	4	0.23	£2.66 £2.22
5/16" x 4-1/2" Turnbuckle	0.31	0.5	0.87	13.71	8.71	0.94	0.44	4.5	0.36	£3.35 £2.79
3/8" x 6" Turnbuckle	0.38	0.54	0.87	16.81	10.81	1.12	0.53	6	0.54	£4.79 £3.99
1/2" x 9" Turnbuckle	0.50	0.65	1.06	25.29	15.29	1.44	0.72	9	1.0	£5.99 £4.99
5/8" x 12" Turnbuckle	0.63	0.79	1.31	32.99	21.28	1.75	0.88	12	1.6	£13.19 £10.99
