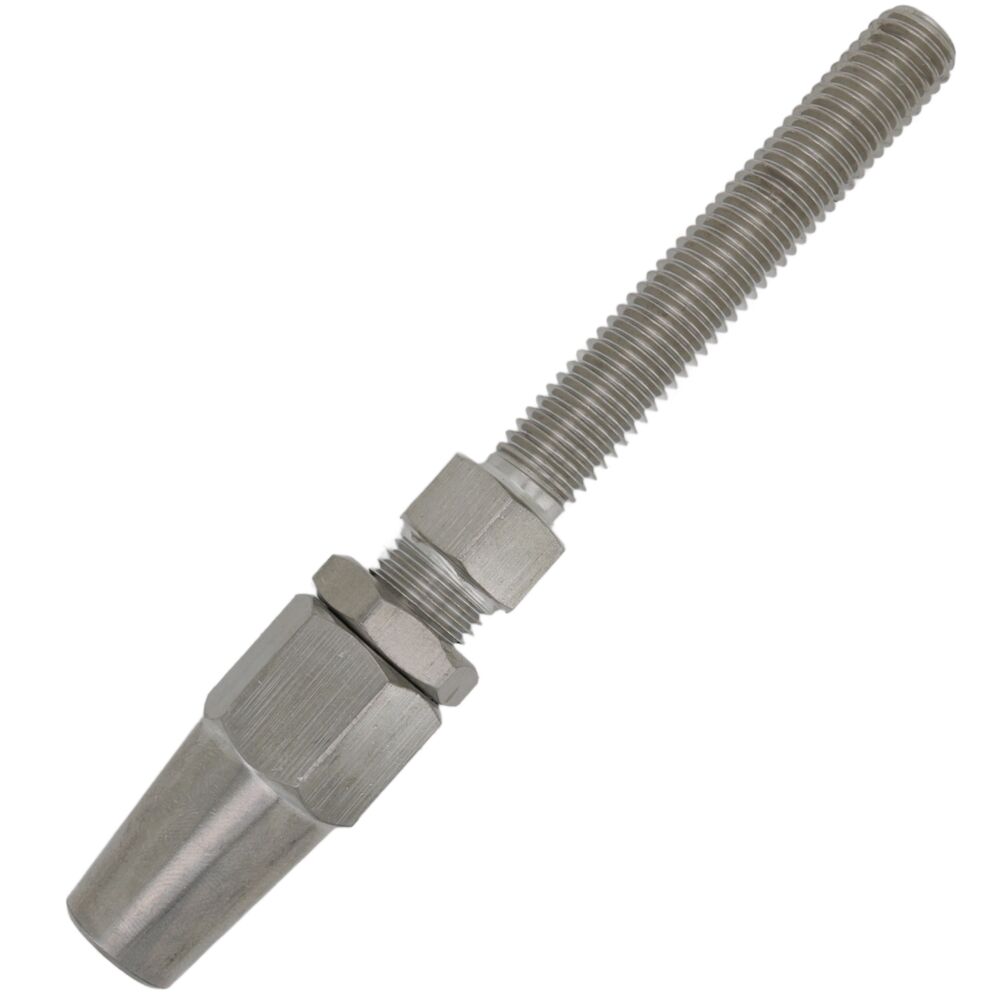

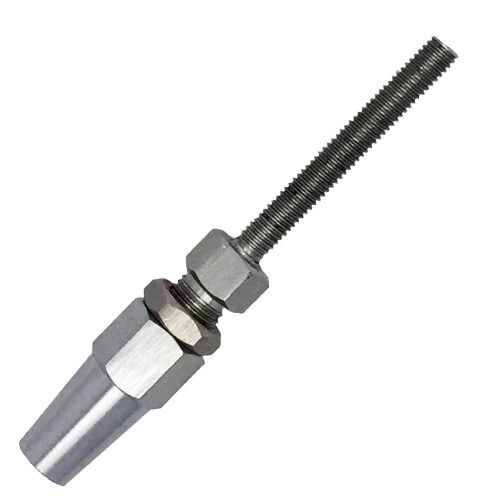

Stainless Steel Wire Rope Swageless Stud Thread Terminal

Swagess studed thread terminals for steel wire rope

These are an excellent alternative to swaging, they are fully self assembled (Using a Spanner) for fast, secured, highly corrosive and professional finish

Marine Grade A4-AISI 316 Polished Stainless Steel Terminal and Centre Cone, this is a new easy fit system where the cone goes over the whole wire rope and is alot easier to fit than cheaper multi part alternatives

Known as DIY Compression or Self Assembly fittings Sizes available to suit 3mm 4mm 5mm 6mm and 8mm diameter Steel Wire Ropes



In stock
Grouped product items
Product Name A (mm) B (mm) L (mm) C (mm) Suit Wire Ø (mm) PRICE Qty
3mm Stainless Steel Swageless Stud Terminal 3.5 16 90 6 3
£9.59 £7.99
4mm Stainless Steel Swageless Stud Terminal 4.5 18 110 8 4
£10.79 £8.99
5mm Stainless Steel Swageless Stud Terminal 6 20 120 10 5
£14.39 £11.99
6mm Stainless Steel Swageless Stud Terminal 7 24 150 12 6
£17.99 £14.99
8mm Stainless Steel Swageless Stud Terminal 10 24 175 16 8
£29.99 £24.99
Show Price without VAT
