PACK OF 25 - KL50 Zip-Clip Rize Steel Wire Rope Grip (1mm - 1.25mm Wire)

In stock
SKU: KL50-25
Model Number KL50
Suits Wire  1mm - 1.25mm
W 20mm
L 13mm
SWL 15kgs




  • Key free, easy release system Zip-Clip Rize steel wire rope grips
  • Suitable for use with galvanised steel wire rope
  • Can be re-used
  • Perfect for use with a variety of tasks, can be used with steel works, I beams or purlins
  • Ideal for suspended lengths of HVAC, electrical, signage and many more applications where a quick and secure wire grip is required
  • SWL stated load is only valid when used with Zip-Clip branded steel wire ropes only
  • Value pack of 25 units
Show Price without VAT
£35.40 £29.50



Installation guide

  • Cut wire to desired length for the drop required
  • Pass one end of the wire through the zip-clip in the direction of the arrow on the zip-clip Rize body and draw through enough wire to go around your fixing point
  • Pass the wire end back through the zip-clip leaving at least 15cm of free wire protruding
  • At the other end again pass the wire through the zip-clip in the direction of the arrow
  • Pass the free end of wire around your suspension or through your fixing and back through the zip-clip leaving 15cm of wire protruding
  • Always confirm engagement of the zip-clip on the wire by pushing the pin in the opposite direction to the arrows indicated

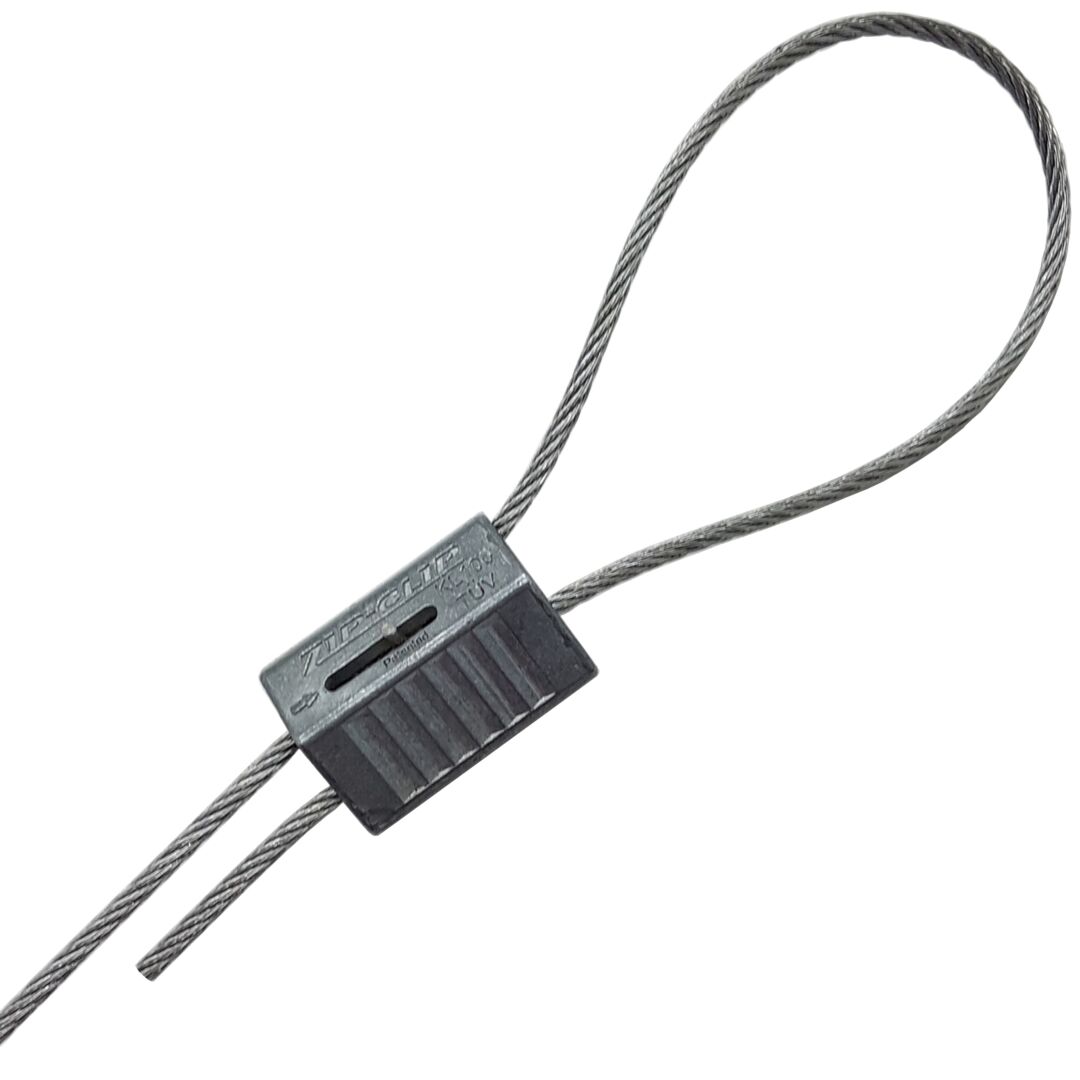

Zip-Clip drawing
