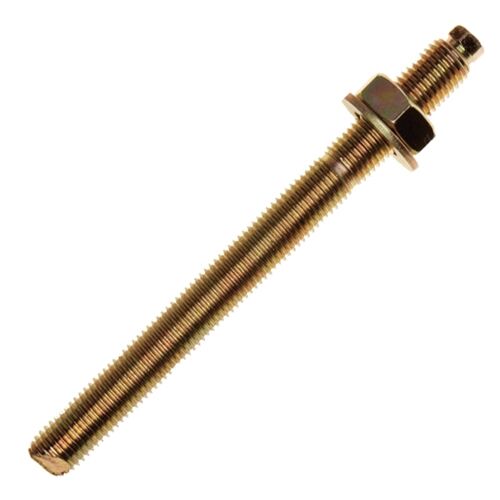

High Tensile Grade 8.8 Anchor Allthread Studs with Setting Tool

More Views

High Tensile Grade 8.8 Anchor Allthread Studs with Setting Tool
Show Price without VAT

Availability: In stock

High tensile grade 8.8 zinc and yellow passivated to 5 microns studs for use glass spin in capsules or injection resin systems, supplied complete with nut and washer.

Priced and supplied in boxes of 10.

Each box has an external hexagon drill drive unit in each box of 10.

Each stud has a depth mark to indicate correct setting depth and a chisel point to facilitate appropriate mixing when using glass spin in capsules.

For load data see the appropriate chemical product.

8mm, 10mm, 12mm and 16mm diameters available.

Product Name Thread Diam (mm) Overall Length (mm) Drill Min Hole Depth (mm) Pack Quantity Price Qty
M8 x 110mm High Tensile Anchor Studs - Box of 10 8 110 80 10
Excl. VAT: £3.33 Incl. VAT: £4.00
M10 x 130mm High Tensile Anchor Studs - Box of 10 10 130 90 10
Excl. VAT: £4.99 Incl. VAT: £5.99
M12 x 160mm High Tensile Anchor Studs - Box of 10 12 160 110 10
Excl. VAT: £7.99 Incl. VAT: £9.59
M16 x 190mm High Tensile Anchor Studs - Box of 10 16 190 125 10
Excl. VAT: £16.86 Incl. VAT: £20.23

Performance Data

The below data is only relevant to the studs, it is not an indication of achievable fixing load, this will be determined by the type of resin, concrete strength or any other base material or anchors they are used with
