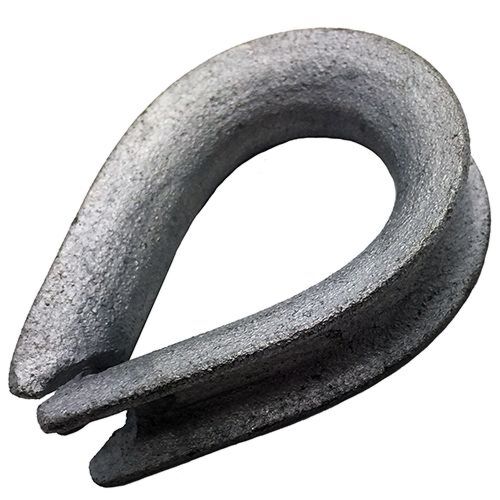

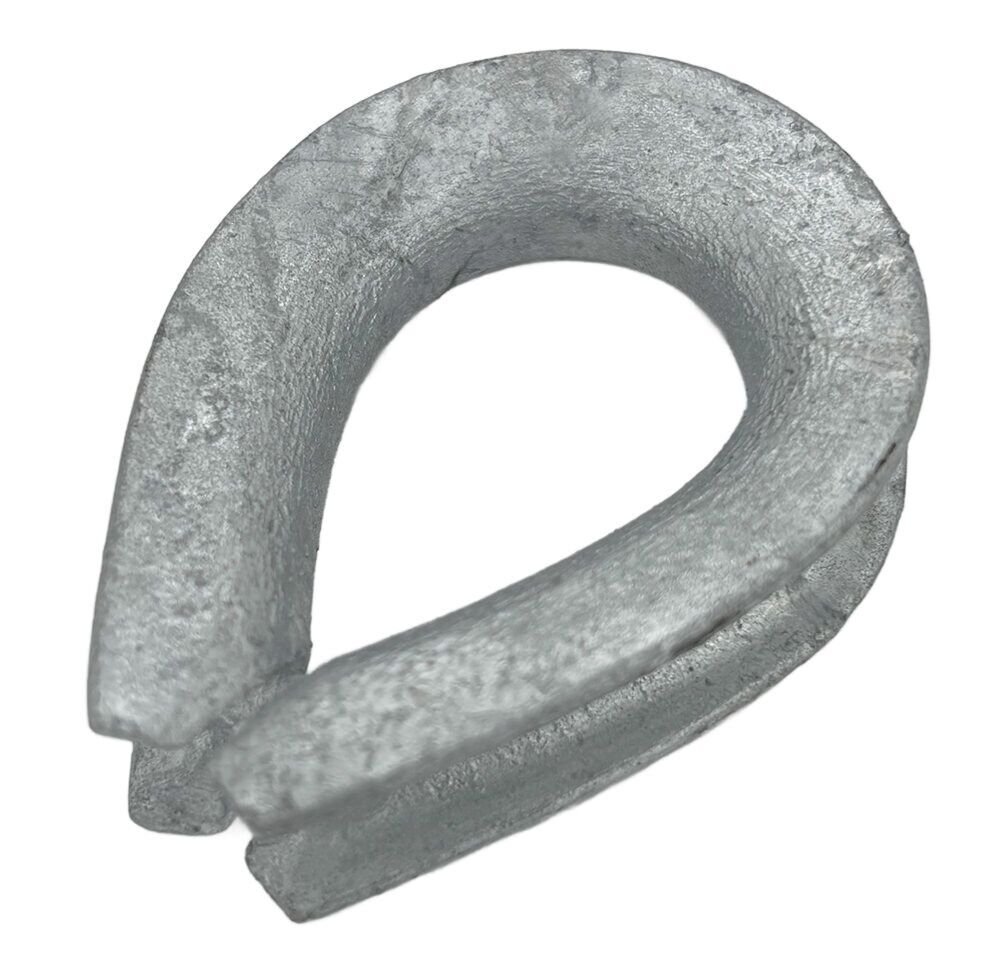

Galvanised Steel Heart Shaped Wire Rope Thimbles BS 464

Hot dipped galvanised steel wire rope heart shaped thimbles to BS 464 specification.

A steel wire rope eye or thimble can be installed inside the loop to preserve the natural shape. It also protects the cable from pinching and abrading on the inside of the loop.

These are also known as tear shaped thimbles, eyelets or hard eyes. This specific wire thimble is used with our lifting sling as they conform to strict BS 464 standards.

Available in diameters 6mm-24mm diameters. Order online today.

Please note - internal measurements may vary slightly.

In stock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Grouped product items
Product Name	A (mm)	B (mm)	D (mm)	E (mm)	C (mm)	F (mm)	Suit Wire Ø (mm)	PRICE
6mm Galvanised Steel Heart Shaped Thimble	16	37	25	48	11	6	6	£0.47 £0.39
8mm Galvanised Steel Heart Shaped Thimble	22	38	33	54	13	8	8	£0.53 £0.44
10mm Galvanised Steel Heart Shaped Thimble	25	48	38	64	14	10	10	£1.08 £0.90
12mm Galvanised Steel Heart Shaped Thimble	32	59	44	79	21	14	12	£1.44 £1.20
16mm Galvanised Steel Heart Shaped Thimble	41	75	59	98	22	16	16	£1.99 £1.66
20mm Galvanised Steel Heart Shaped Thimble	51	92	73	124	29	21	20	£3.47 £2.89
22mm Galvanised Steel Heart Shaped Thimble	57	102	83	134	32	22	22	£4.19 £3.49
24mm Galvanised Steel Heart Shaped Thimble	70	119	108	162	35	25	25	£6.41 £5.34
