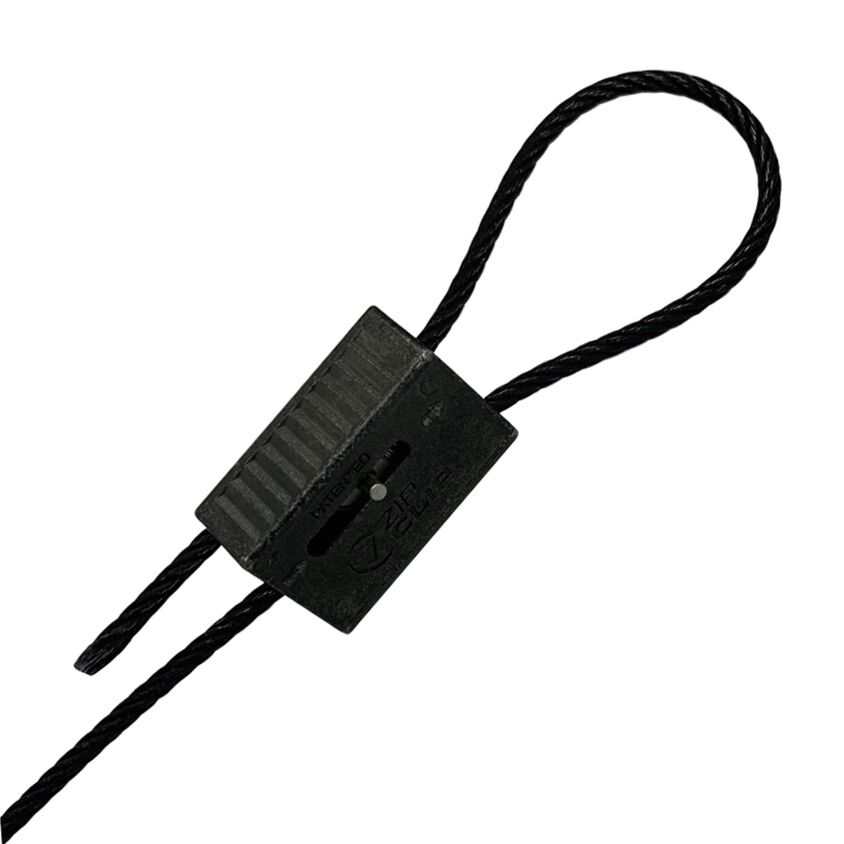

Blackened KL200 Zip-Clip Rize Steel Wire Rope Grip (3mm - 4.5mm Wire)

In stock
SKU: BLKKL200
Model Number BLK/KL200
Suits Wire  3mm - 4.5mm
W 47mm
L 36mm
SWL 300kgs




  • Black zip-clip wire rope grip with key free easy release system
  • Suitable for use with blackened galvanised steel wire rope
  • Can be re-used
  • Perfect for use in theatre, stage production, shops, sign hanging or in any environment where you want the fitting to be discreet
Show Price without VAT
£11.99 £9.99

Installation guide

  • Cut wire to desired length for the drop required
  • Pass one end of the wire through the zip-clip in the direction of the arrow on the Zip-Clip Rize body and draw through enough wire to go around your fixing point
  • Pass the wire end back through the zip-clip leaving at least 15cm of free wire protruding
  • At the other end again pass the wire through the zip-clip in the direction of the arrow
  • Pass the free end of wire around your suspension or through your fixing and back through the zip-clip leaving 15cm of wire protruding
  • Always confirm engagement of the zip-clip on the wire by pushing the pin in the opposite direction to the arrows indicated

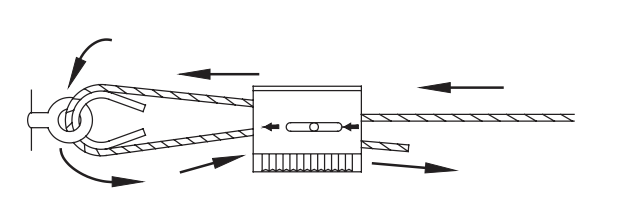

Zip-Clip drawing
