16mm (M16) Spin In Quartz Anchor Capsule

More Views

16mm (M16) Spin In Quartz Anchor Capsule
Excl. VAT: £0.99 Incl. VAT: £1.19
Show Price without VAT

Availability: In stock

SKU: JCAPSM16
Suit Thread Diameter 16mm (M16)
Capsule Diameter 17mm
Drill Hole Diameter 18mm
Capsule Length 95mm
Minimum  Hole Depth 125mm

  • Spin in glass capsule with quartz, ETA option 7
  • Epoxy acrylate

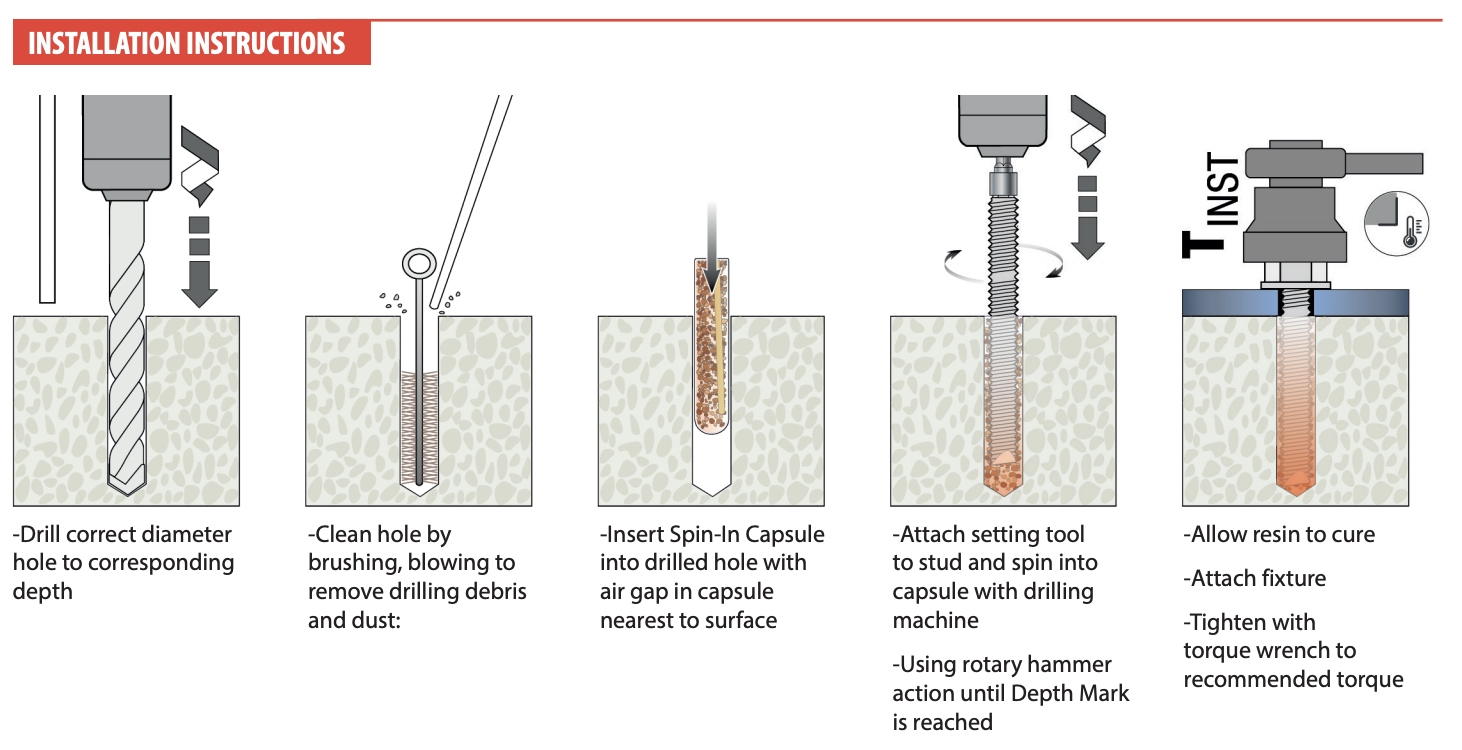

  • The spin in glass capsule anchor is used with the threaded studs to provide a stress free anchorage in concrete
  • The quartz aggregate contained in the capsule enable the anchor to achieve exceptional loads
  • Click here for full performance data
