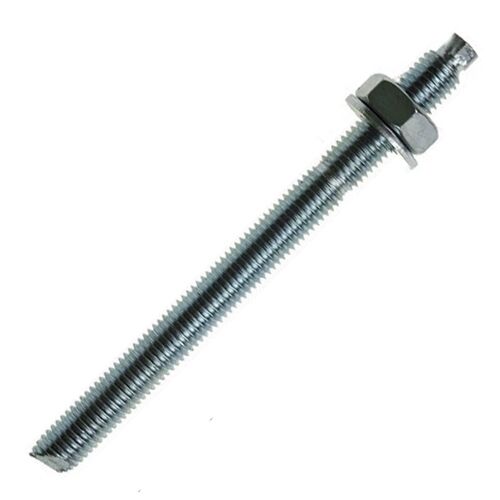

Zinc Plated Anchor Allthread Studs with Setting Tool

More Views

Zinc Plated Anchor Allthread Studs with Setting Tool
Show Price without VAT

Availability: In stock

Grade 5.8 zinc and clear passivated to 5 microns studs for use with Spin In Capsules or J-Fix Injection Resin Systems - Priced per pack of 10

Supplied complete with nut and washer, available in 8mm, 10mm,12mm and 16mm diameters.

Metric coarse, right handed thread, supplied with chisel pointed end.

The studs have external hexagon drive units with one drill drive setting tool unit in each box of 10 studs.

Each stud has a depth mark to indicate correct setting depth and a chisel point to facilitate appropriate mixing when using glass spin in capsules.

Product Name Thread Diam (mm) Overall Length (mm) Drill Min Hole Depth (mm) Pack Quantity Price Qty
M8 x 110mm Zinc Plated Anchor Stud 8 110 80 10
Excl. VAT: £2.94 Incl. VAT: £3.53
M10 x 130mm Zinc Plated Anchor Stud 10 130 90 10
Excl. VAT: £4.40 Incl. VAT: £5.28
M12 x 160mm Zinc Plated Anchor Stud 12 160 110 10
Excl. VAT: £5.99 Incl. VAT: £7.19
M16 x 190mm Zinc Plated Anchor Stud 16 190 125 10
Excl. VAT: £12.54 Incl. VAT: £15.05

Performance Data

The below data is only relevant to the studs, it is not an indication of achievable fixing load, this will be determined by the type of resin, concrete strength or any other base material or anchors they are used with
