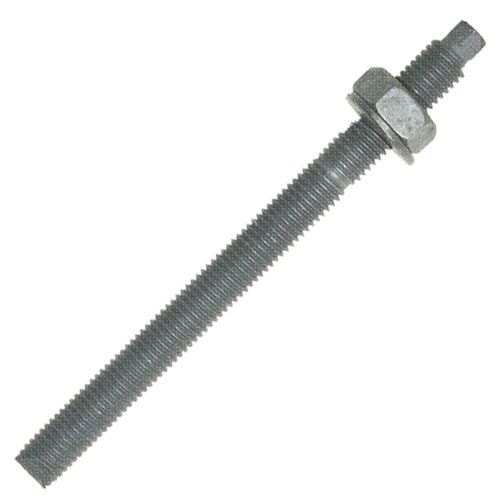

Hot Dipped Galvanised Anchor Allthread Studs with Setting Tool

More Views

Hot Dipped Galvanised Anchor Allthread Studs with Setting Tool
Show Price without VAT

Availability: In stock

Hot dipped galvanised to EN1461, for use with glass spin in capsules or injection resin systems.

Supplied complete with nut and washer, available in 8mm, 12mm and 16mm diameters.

Metric coarse, right handed thread, supplied with chisel pointed end.

The studs have external hexagon drive units with one drill drive setting tool unit in each box of 10 studs.

Each stud has a depth mark to indicate correct setting depth and a chisel point to facilitate appropriate mixing when using glass spin in capsules.

Product Name Thread Diam (mm) Overall Length (mm) Drill Min Hole Depth (mm) Pack Quantity Price Qty
M16 x 190mm Hot Dipped Galvanised Anchor Studs - Box of 10 16 190 125 10
Excl. VAT: £16.64 Incl. VAT: £19.97
M8 x 110mm Hot Dipped Galvanised Anchor Studs - Box of 10 8 110 80 10
Excl. VAT: £3.70 Incl. VAT: £4.44
M12 x 160mm Hot Dipped Galvanised Anchor Studs - Box of 10 12 160 110 10
Excl. VAT: £8.84 Incl. VAT: £10.61

Performance Data

The below data is only relevant to the studs, it is not an indication of achievable fixing load, this will be determined by the type of resin, concrete strength or any other base material or anchors they are used with
