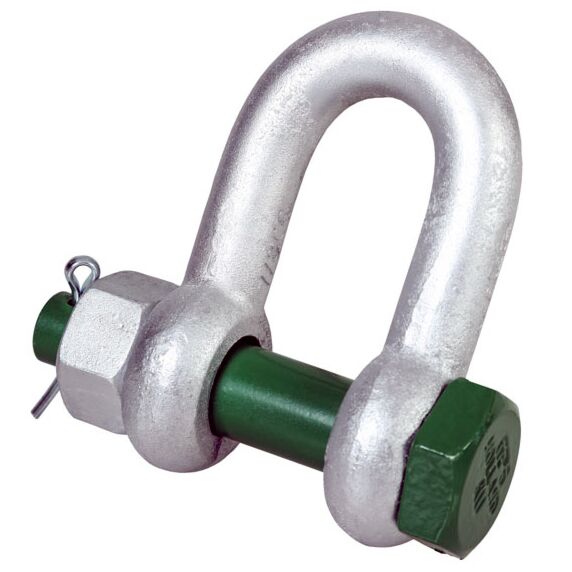

Galvanised Steel Green Screw Collar Pin D Shackle with Safety Nut and Bolt Pin

GS Products supply grade 6 high tensile steel, quenched and tempered lifting green pin D shackles.

These are VAN BEEST green pin branded D or dee shackles. Their minimum breaking load is 6 times the working load limit (WLL).

These D shackles conform to EN 13889 and meet the performance requirements of US Fed spec RC-C-271 type IVA class 2, grade A.

They are made with hot dipped galvanised steel.

Working temperature ranges from -20 °C up to +200 °C. DNV type approved shackle.

In stock

Grouped product items
Product Name	A (mm)	B (mm)	H (mm)	D (mm)	E (mm)	C (mm)	F (mm)	G (mm)	PRICE
2 ton	13.5	16	83	13.5	22	34	43	85	£12.84 £10.70
3.25 ton	16	19	99	16	27	40	51	105	£18.82 £15.68
4.75 ton	19	22	115	19	31	47	59	125	£23.90 £19.92
6.5 ton	22	25	131	22	36	53	73	144	£35.02 £29.18
8.5 ton	25	28	151	25	43	60	85	161	£50.14 £41.78
9.5 ton	28	32	167	28	47	67	90	179	£69.74 £58.12
12 ton	32	35	179	32	51	74	94	199	£90.65 £75.54
